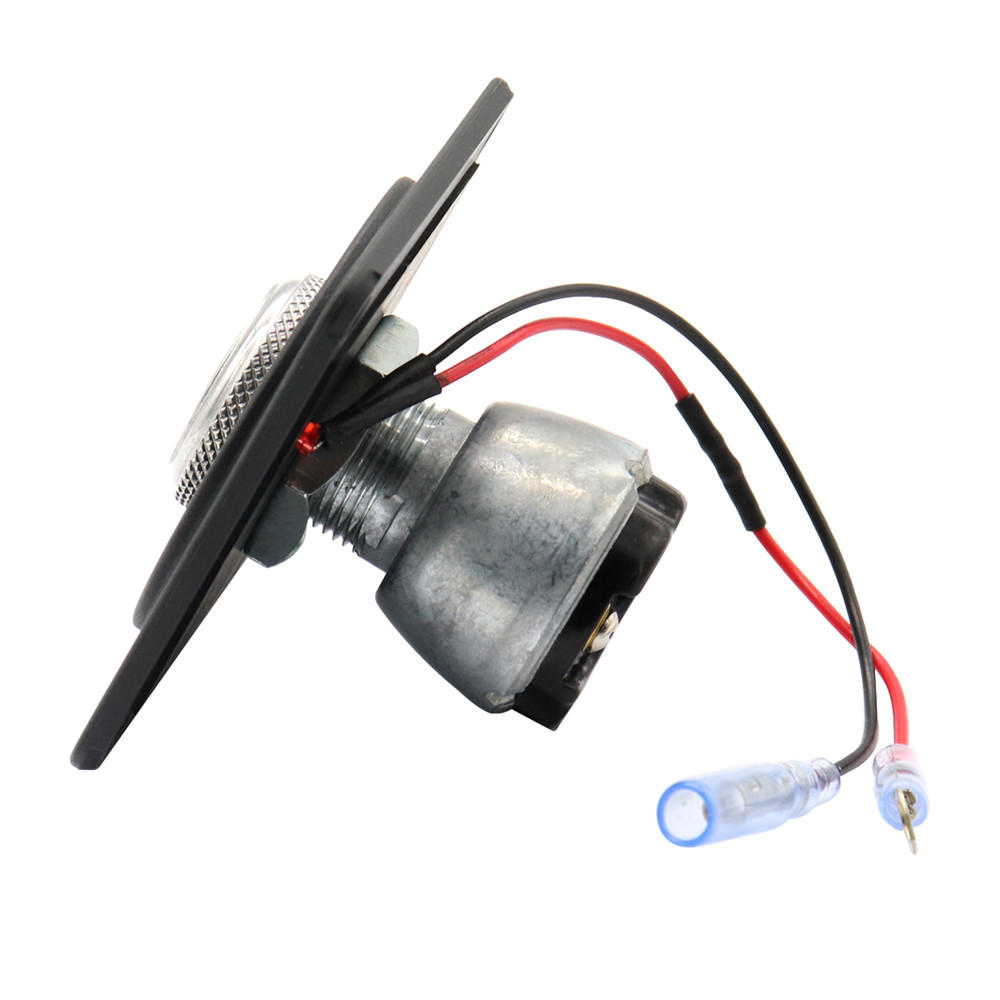

Universal Car Boat LED Key Ignition Switch Panel Barrel Engine Start 2-Position
Specification:Faceplate: NylonSwitch Ratings: DC 12VPanel Rating: 10 AProduct Dimensions: (W x H) 69 x 69mmMounting Depth: 45mmPanel Cut-out: diameter 40 mmInstallation Instruction:1. Disconnect all power(AC DC) Disconnect positive cables from all batteries and AC shore power cord from the yacht.2. Cut opening for mounting location,Using the mounting dimensions provided to measure and cut out the mounting hole in thesurface where the panel is to be mounted.3. Connect Positive and Lamp negative feed wire Connect the DC power source(the batteries) to the screw terminal away from the LED. Then connectthe LED negative wire (black) to a DC negative bus bar.4. Connect the LED positive wire and devices,Connect the LED positive wire (red) to screw,terminal near the LED. Connect the device ordistribution panels to the same screw terminal.5. Mount the switch panel Clean the surface where the panel is to be mounted carefully. Place the panel and screw down the panelto the mounting surface as tight as possible with self-tapping screws.6. Reconnect and Test Reconnect all the AC DC powers to supply power to the panel. Turn on and off all branch circuits to check if the panel works normally.Package Included:1 X Ignition Switch Panel
