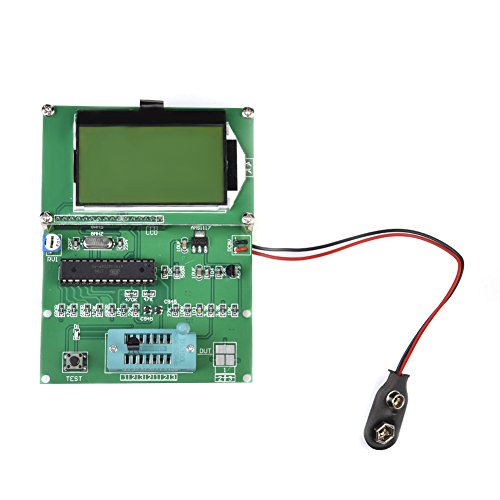

Shantan Transistor Tester Liquid Crystal Display Automatic Identification ESR Meter Cymometer Square Wave Generator Electronic DIY Components  Resistance Capacitance Diode Tester (T7)

[ad_1]

 Parameters:

1.Multi-functional automatic detection (transistor, etc.)

2. Comes with plastic shell protection, easy to store and    carry

3. 9V battery-powered (not included), one-touch test operation, closed current of 20nA

Multifunctional transistor tester for automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors,    resistors, capacitors or other devices. Easy and convenient to operate.

Features:

The display is 128*64 LCD with backlight in blue color.

Powered by 9V battery.

Measure the gate threshold voltage and gate capacitance    of the MOSFET.

Measure bipolar transistor current amplification factor and base-emitter threshold voltage.

Short detection time: only 2 seconds.

Note:

Please make sure that capacitors are discharged before testing.

Automatically identify the pin sequence, but the pin insert number can not be repeated (for example: the transistor can not insert 1,2,1)

Specifications:

Material: PCB + Plastic

Display: 128 * 64 LCD

Shutdown Current: 20nA

Resistor Test Range: 0.5?-50M?

Inductor    Test Range: 0.01mH-20H

Capacitor Test Range: 25pF-100000uF

Item Size: 10.5 * 8 * 2cm

Package List:

1 * Transistor Tester (battery not included)

⊙▽⊙ Automatically detects NPN, PNP bipolar transistors, N channel and P-channel MOS FETs, JFETs, diodes, two diodes, small hybrid thyristor unidirectional and bidirectional( This is a video of how to use the product: https://www.youtube.com/channel/UCdVq0or-fEAHZiwEznIGGug?view_as=subscriber)
⊙▽⊙ Test Automatically pin a component, and display it on the LCD display, Use 12864 liquid crystal display with green backlight, 9V battery-powered (not included)
⊙▽⊙ In Grade to detect the transistor, MOSFET amplifier coefficient protection diode and the base to determine the transistor output to voltage side output
⊙▽⊙ It can be in the right order and the diode displays the two diodes symbols, and gives the direct voltage of the diode
⊙▽⊙ Can be obtained with a single connection rectifier bridge measurement. Warning: Before measuring capacity, the condenser must be discharged, otherwise it is very likely to damage the instrument
